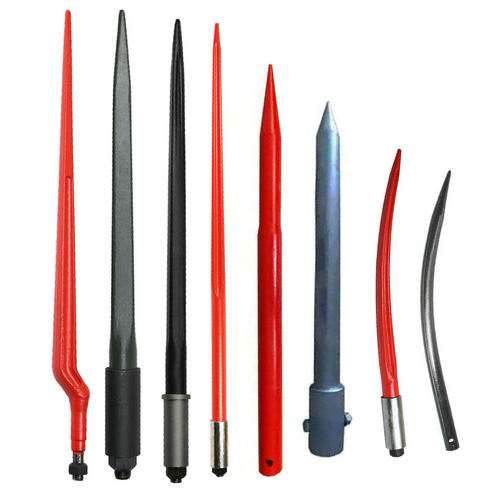

Hay Bale Spear Spike

Hay Spear Spears 49" Hay Bale Spear Spike, 4000 lbs Capacity Quick Attach Square Hay Bale Spears,

2 Pics Black Bale Forks, Bale Hay Spike with Hex Nut & Sleeve for Buckets Tractors Loaders

Durable Quality: This hay bale spear is made of high-strength spring steel; it is sturdy and durable, with a bearing capacity of up to 3000lbs, and can be used to move any size of hay bales.

· Special Design: Our 39-inch hay spear went through special heat treatment. Thus it is not easily deformed. In addition, the spear's surface is powder-coated for corrosion-resistance.

· Easy to Install: Our bale spear can easily attach to and remove from the quick attach hookups and hitches the receiver of your equipment due to the convenient bolt and nut system.

· Strong Penetration: With its sturdy steel rod and sharp taper-shaped point, the hay bale spike can easily penetrate your bales without pushing them off of their stack and quickly getting out.

· Wide application: Our hay bale spear is compatible with various implements, such as tractors, loaders, cranes, telehandlers, etc. It is a perfect tool for your farm work or agribusiness.

Product packaging

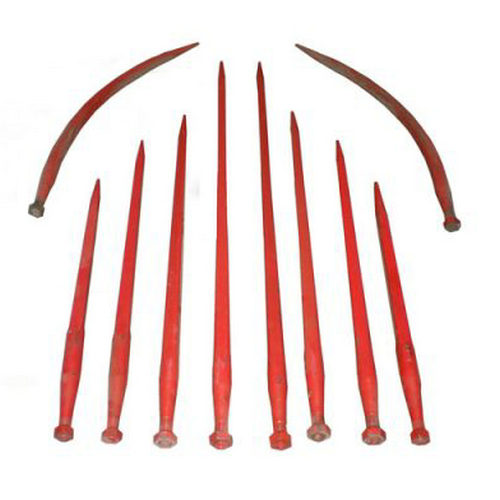

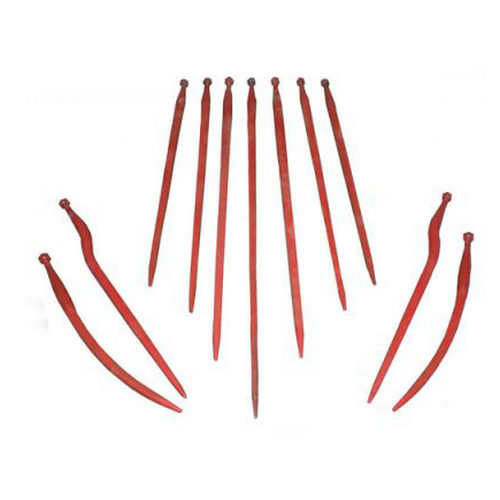

Hay Loader Tine Profiles

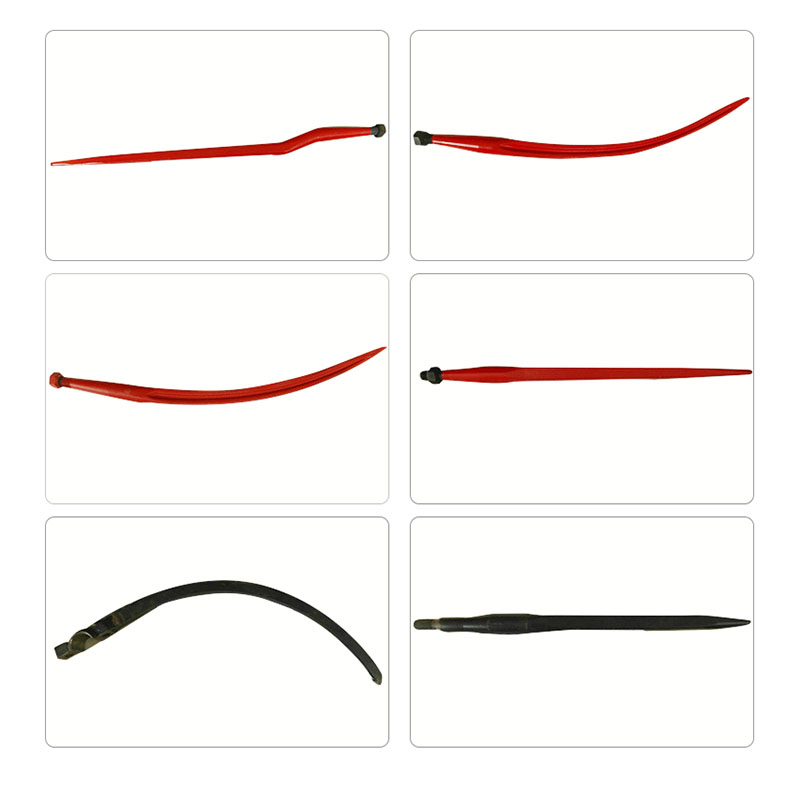

* 3 tine shapes (Straight, Curved and Cranked)
* 4 profiles (Star, Double-T, Sqaure, Round )
* We can produce rake teeth according to sample or drawings.
* The length from 300-1500mm,diameter from 20-50mm

Straight Tines	Specifications		Contact merchants for other sizes
	Φ	L- mm
Star Profile	35/36/40/42/44	600-1400
Double-T Profile	35/36/40/42	600-1400
Square Profile	35/36/40/42/44/50/55	600-1450
Round Profile	35/36/40/42/44/50/55	380-1550

Curved Tines	Specifications		Contact merchants for other sizes
	Φ	L- mm
Star Profile	35/36/40/42/44	600-1400
Double-T Profile	35/36/40/42	600-1100
Square Profile	35/36/40/42/44/50	600-1000
Round Profile	25/28/30/35/36/40/42/44	380-1000

Curved Tines	Specifications		Contact merchants for other sizes
	Φ	L- mm
Star Profile	35/36/40/42/44	600-1000
Double-T Profile	35/36/40	600-1100
Square Profile	35/36/40/42/44	600-100
Round Profile	25/28/30	400-1000
