Combine Harvesters

  • Combine Grain Tank Bottom
  • Combine Grain Tank Bottom
Combine Grain Tank Bottom Combine Grain Tank Bottom

Combine Grain Tank Bottom

Case IH - Combine Parts: 1640, 1644, 1660, 1666, 1680, 2144, 2166, 2188, 2344, 2366, 2388, 2577, 2588

International Harvester - Combine Parts: 1440, 1460, 1480

Diagram reference #3

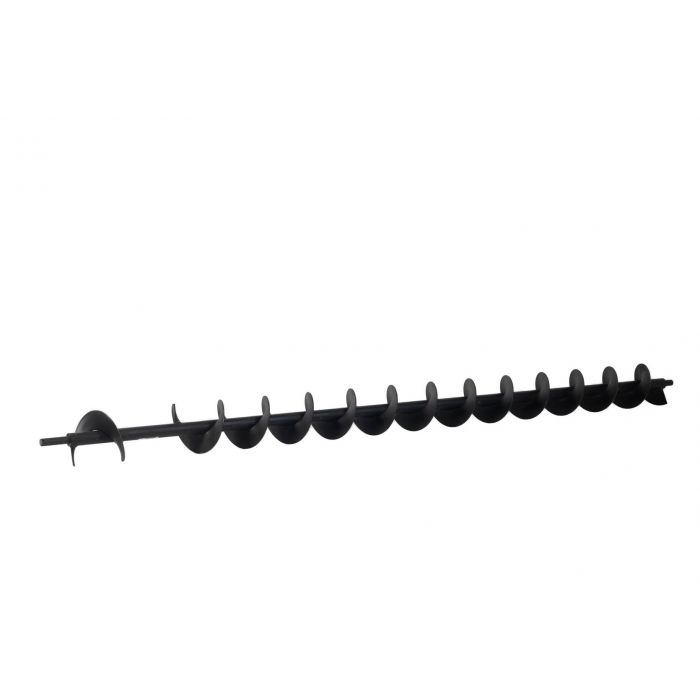

Loewen Augers are made with Super-Edge Flighting and 3/16'' or heavier gauge material for most models.

Hard Surfaced outer edge for longer wear.

Replaces Part# 192784C4, 87617556

Overall Length: 110.375"

Shaft Diameter: 1.75"

Flighting: 7" LH

Auger is balanced from factory

Shipping Weight: 58.00 lbs



Technical Bulletin: Grain Tank Front Cross Auger Vibration. The OEM manufacturer of this combine introduced an increased unloading discharge rate on later model combines. This was achieved by changing the front cross auger drive sprocket from a 33-tooth to a 28-tooth sprocket. This kit was also offered as a retrofit to earlier machines. The increased unloading discharge rate may cause the front cross auger to vibrate. To help control the vibration problem on machines equipped with the increased discharge rate, the OEM manufacturer as well as A&I are offering an improved front cross auger A-87617556. This improved auger has a 1.75-inch inner tube that will resist flexing better than the original 1.5-inch inner tube.


Model Application


1440

1460

1480

1640

1644

1660

1666

1680

2144

2166

2188

2344

2366

2388

2577

2588
